World Vector Shoreline (WVS®)

Сообщение bim2010 » 24 мар 2010, 18:02

World Vector Shoreline (WVS®)

Масштаб: 1:250000
Географический охват: глобальный
Разработана: NGA (National Geospatial-Intelligence Agency), бывшая NIMA (National Imagery and Mapping Agency) США
Система координат: WGS 1984
Язык атрибутивной информации: английский

Ссылка для скачивания в формате Mapgen, Arc/Info Ungenerate, Matlab, and Splus


Ссылка имеет ограничение на скачивание: "Please do not try to extract huge regions like all of the US coastline from WVS, there is a 500,000 point limit on each extraction."
Форматы второй ссылки: "The original WVS shoreline is available in 4 formats – Mapgen, Arc/Info Ungenerate, Matlab, and Splus. See Data Access section above for instructions to convert from Arc/Info Ungenerate format to ESRI shapefile."

Полное покрытие в формате : ESRI shapefile format

Описание: GLOBAL SHORELINE DATA

MIL-W-89012
SPECIFICATION WORLD VECTOR SHORELINE WVS
48 страниц

Изменения
Amendment 2

The NGA Office of Global Navigation, Maritime Domain is in the process of developing a new version of World Vector Shoreline (WVS®) and in support of this effort has acquired a satellite derived Global Shoreline Data set. This new Global Shoreline Data set is an approximation of the High Water Line; it is NOT a Mean High Water Line, since the source data have not been tide coordinated. Regions 2, 3, and part of 10 were updated with post December 2004 imagery, so as to update the region after the 2004 Indian Ocean tsunami. Work to fill in gaps in the prototype Global Shoreline Data set, particularly cloud cover gaps, has now been completed. Continuous shoreline data, approximately between 60 degrees north and 56 degrees south, are being made available.

При построении использовались Shuttle Radar Topography Mission (SRTM) и LANDSAT 7
Существуют пробелы по всему набору данных из-за облачности и в северных районах из-за льда и снежного покрова. Отсутствует около 10% от общего набора данных по береговой линии.





Prototype Global Shoreline Data (PGS)


Масштаб: 1:250000
Географический охват: глобальный
Разработана: NGA (National Geospatial-Intelligence Agency), бывшая NIMA (National Imagery and Mapping Agency) США
Система координат: WGS 1984
Язык атрибутивной информации: английский

Формат: ESRI shapefile format

Существуют пробелы по всему набору данных из-за облачности и в северных районах из-за льда и снежного покрова. Отсутствует около 10% от общего набора данных по береговой линии.

The NGA Office of Global Navigation, Maritime Domain is in the process of developing a new version of World Vector Shoreline (WVS®) and in support of this effort has acquired a satellite derived Global Shoreline Data set. This new Global Shoreline Data set is an approximation of the High Water Line; it is NOT a Mean High Water Line, since the source data have not been tide coordinated. Regions 2, 3, and part of 10 were updated with post December 2004 imagery, so as to update the region after the 2004 Indian Ocean tsunami. Work to fill in gaps in the prototype Global Shoreline Data set, particularly cloud cover gaps, has now been completed. Continuous shoreline data, approximately between 60 degrees north and 56 degrees south, are being made available.

IMPORTANT: The Global Shoreline Data set continues to be reviewed and updated since the original LANDSAT data were acquired. These data are not perfect in that changes such as land reclamation may have occurred since the original NGA compilation. These data are not intended for safety of navigation products and do not necessarily reflect recognition of the political status of an area by the coastal nations affected or by the United States Government. Region 29 shoreline is not available and the small sliver of Region 13 on the right side of the Region Diagram has no shoreline.

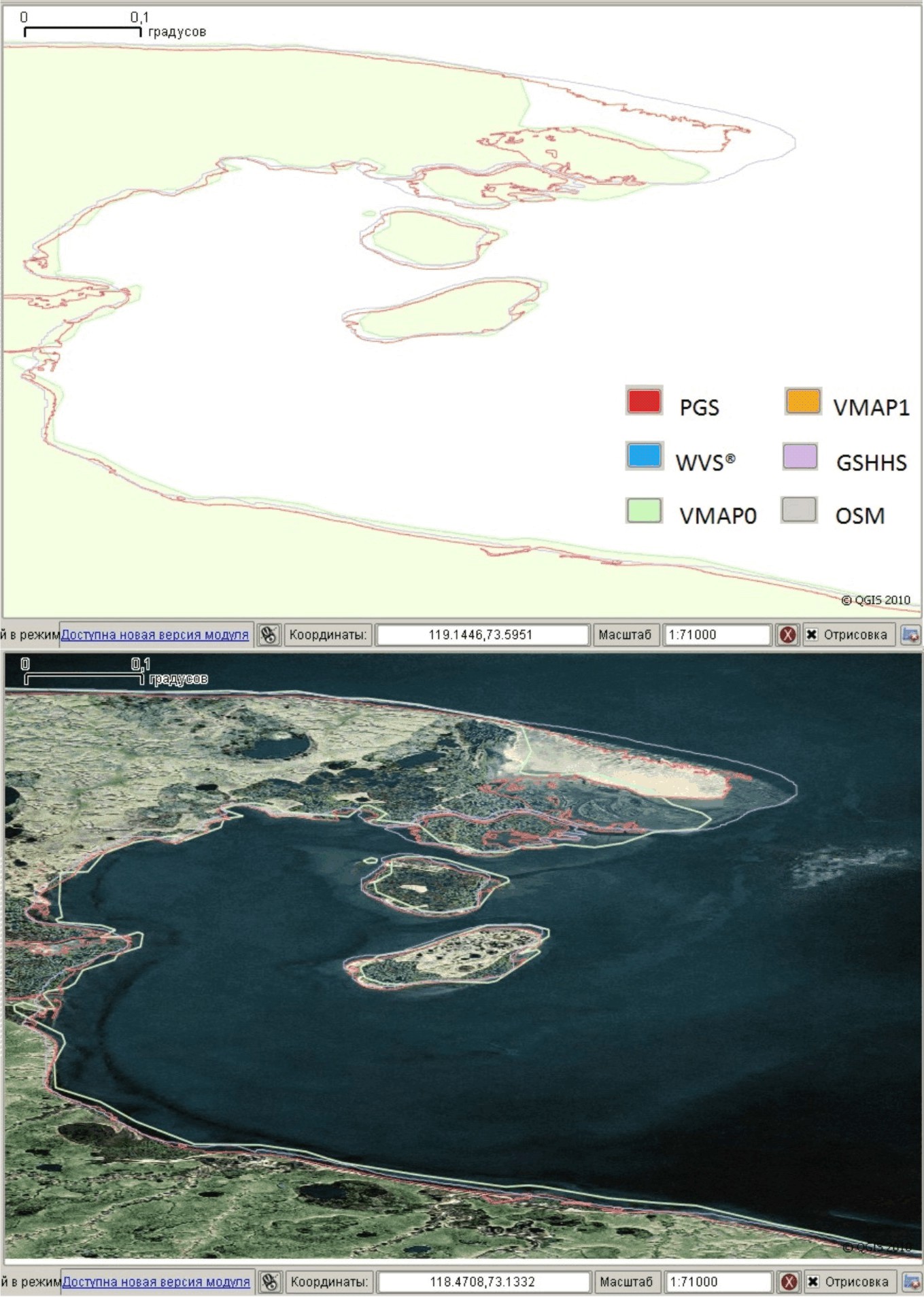

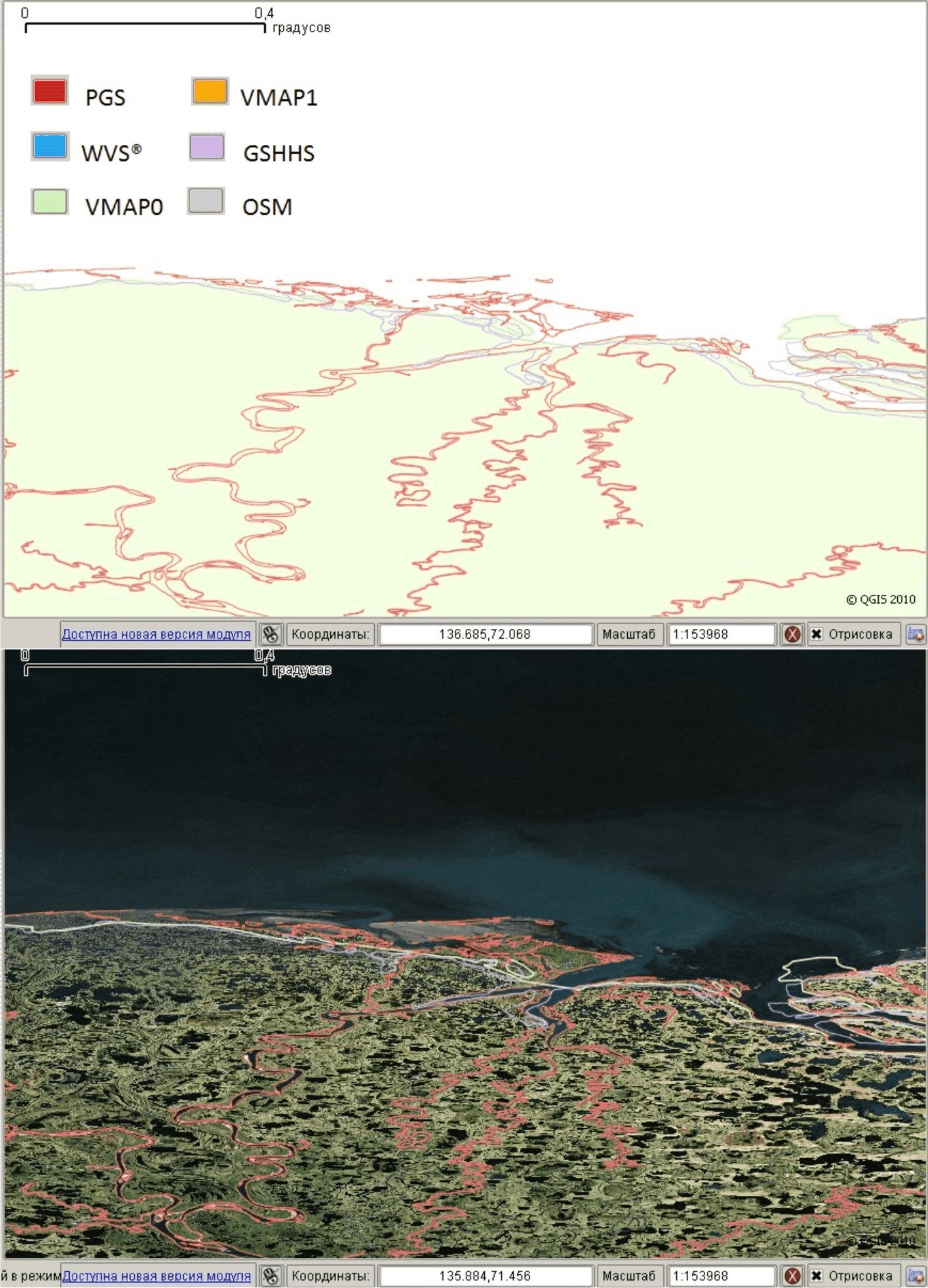

Сравнение различных источников
Вложения
Последний раз редактировалось bim2010 02 апр 2010, 20:23, всего редактировалось 14 раз.

Аватара пользователя
Максим Дубинин
MindingMyOwnBusiness
Сообщения: 9035
Зарегистрирован: 06 окт 2003, 20:20
Статьи: 231
Проекты: 12/6
Репутация: 712
Ваше звание: NextGIS
Откуда: Москва
Контактная информация:

Re: World Vector Shoreline (WVS®)

Сообщение Максим Дубинин » 24 мар 2010, 18:25

а масштаб?
пристегивайтесь, турбулентность прямо по курсу

bim2010
Гуру
Сообщения: 950
Зарегистрирован: 27 янв 2009, 22:57
Статьи: 1
Проекты: 2
Репутация: 239

Re: World Vector Shoreline (WVS®)

Сообщение bim2010 » 24 мар 2010, 18:48

1:250000 исправил

Кроме того существует производный продукт WVSPLUS (World Vector Shoreline Plus)

World Vector Shoreline Plus (WVSPLUS®)



Масштаб: 1:250,000, 1:1,000,000, 1:3,000,000, 1:12,000,000, 1:40,000,000 и 1:120,000,000.
Географический охват: глобальный
Разработана: NGA (National Geospatial-Intelligence Agency), бывшая NIMA (National Imagery and Mapping Agency) США
Система координат: WGS 1984
Язык атрибутивной информации: английский
WVSPLUS® база данных состоит из шести библиотек .
Каждая библиотека содержит :
Countries/Coastlines/Oceans (COC) coverage including both line and area features such as coastlines,
political boundary lines and other lines of separation,
administrative areas,
and oceans.

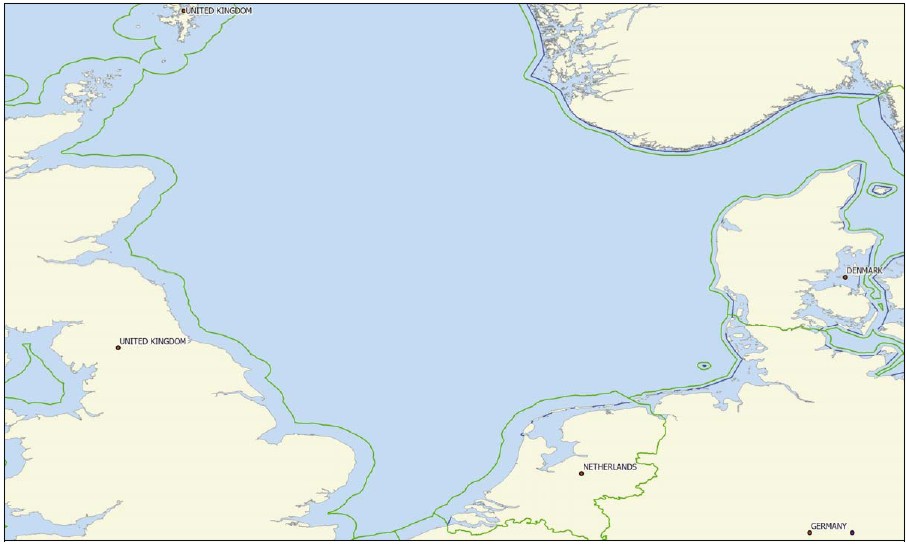

Each library also contains the following reference coverages: library reference (LIBREF), which gives an overview of the library; tile reference (TILEREF), which defines the tiling scheme for each library; and names placement (GAZETTE), which contains point features that represent the approximate centroid of each locality in the WVSPLUS database. The maritime boundaries (MAB) and maritime boundaries supplemental (MBS) coverages contain maritime claims for each country as derived from the Maritime Claims Reference Manual, DOD 2005.1M, 2001. MAB and MBS are found only in the WVS250K library (1:250,000 scale). The bathymetry (BAT) coverage exists only in the WVS003M, WVS012M, and WVS040M libraries and contains depth contours and depth areas derived from the digital bathymetric database product. See the VPF World Vector Shoreline (WVSPLUS) Draft Specification (MIL-PRF-89012A dated August 24, 1999) for a detailed product definition, and the Vector Product Formal (VPF) Military Standard (MIL-STD-2407) for more descriptions of VPF.
Source Data: Digital Landmass Blanking (DLMB) data, which were derived primarily from the Joint Operations Graphics and coastal nautical charts produced by the predecessor agency, the Defense Mapping Agency (DMA). The source of bathymetric data is a digital bathymetric database (DBDB5), gridded bathymetry produced by comparing and integrating available bathymetric soundings with cartographic sources. DBDB5 contains gridded values at five-minute spacings and has a resolution equivalent to a 1:4,000,000 scale chart. The MAB and MBS coverages contain maritime claims for each country as derived from the Maritime Claims Reference Manual, DOD 2005.1M, 2001.

MIL-PRF-0089012A (NIMA)
PERFORMANCE SPECIFICATION WORLD VECTOR SHORELINE (WVSPLUS ®)
137 страниц

Ссылки: _1_ _2_ _3_

Скачать пример по России (tif)
Вложения

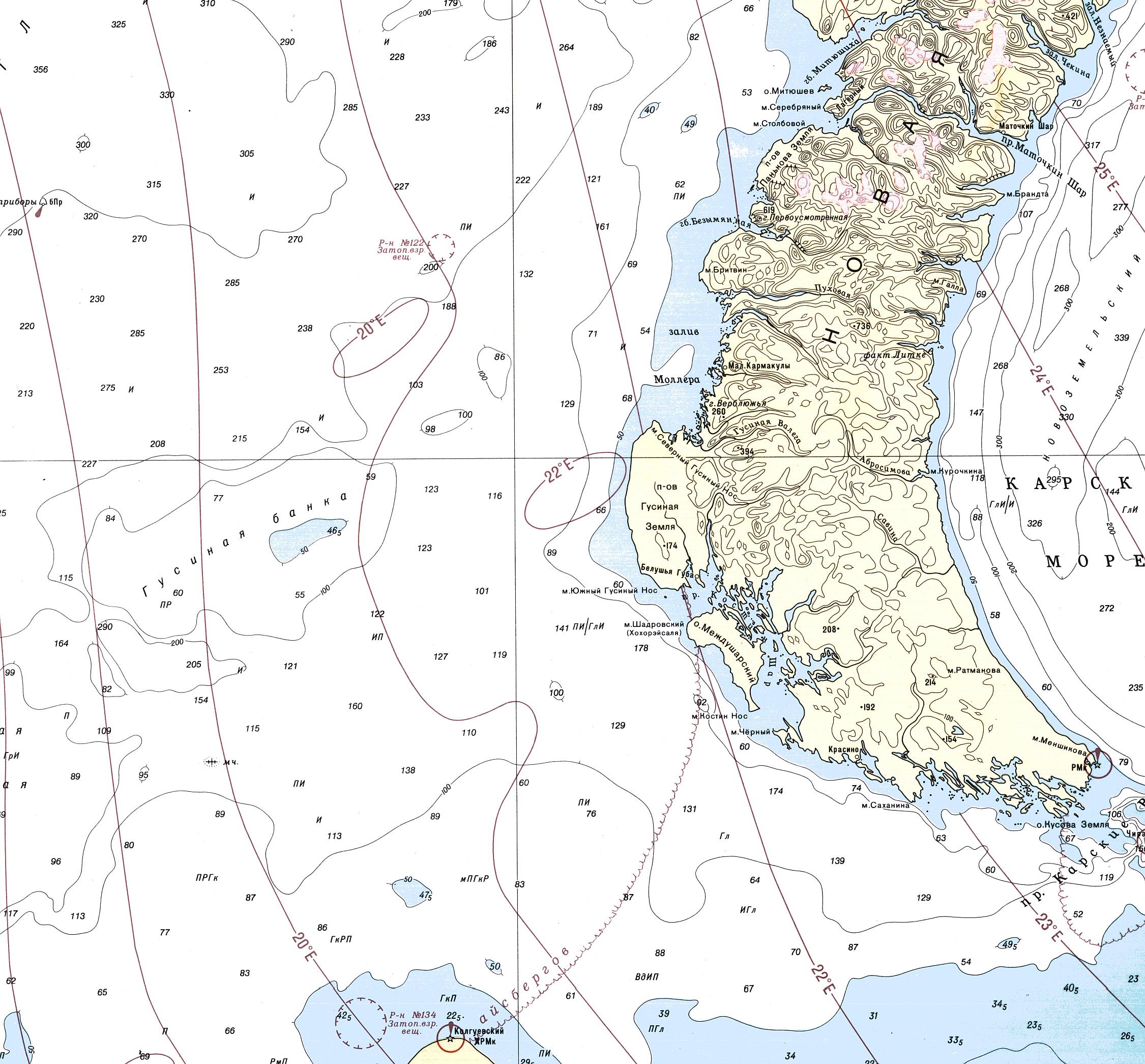

Пример по России
Последний раз редактировалось bim2010 31 мар 2010, 18:28, всего редактировалось 9 раз.

Аватара пользователя
Максим Дубинин
MindingMyOwnBusiness
Сообщения: 9035
Зарегистрирован: 06 окт 2003, 20:20
Статьи: 231
Проекты: 12/6
Репутация: 712
Ваше звание: NextGIS
Откуда: Москва
Контактная информация:

Re: World Vector Shoreline (WVS®)

Сообщение Максим Дубинин » 24 мар 2010, 19:37

мне кажется или тут то ли 3 то ли 4 разных продукта, причем WVS и данные Eastview с жесткими ограничениями.

Не встречались ли упоминаемые исходные данные в VPF?
пристегивайтесь, турбулентность прямо по курсу

bim2010
Гуру
Сообщения: 950
Зарегистрирован: 27 янв 2009, 22:57
Статьи: 1
Проекты: 2
Репутация: 239

Re: World Vector Shoreline (WVS®)

Сообщение bim2010 » 24 мар 2010, 20:39

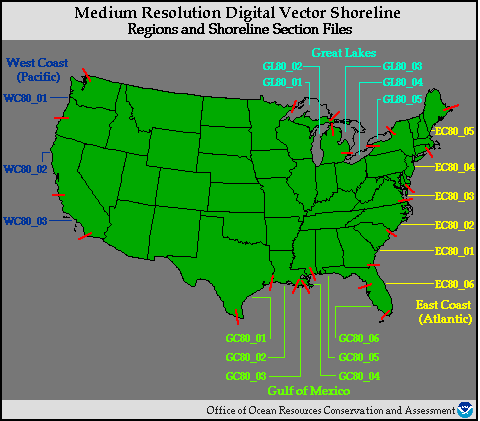

NOAA Medium Resolution Shoreline

Источник: здесь

Описание

Формат: ESRI shapefile format
Масштаб 1:70000
Выложена только территория: United States of America. Alaska, the Hawaiian Islands, Puerto Rico

NOAA's Medium Resolution Digital Vector Shoreline is a high-quality, Geographic Information System-ready, general-use digital vector data set created by the Strategic Environmental Assessments (SEA) Division of NOAA's Office of Ocean Resources Conservation and Assessment. Compiled from hundreds of NOAA coast charts, this product comprises over 75,000 nautical miles of coastline (nearly 2.5 million vectices), representing the entire coterminous United States of America. Alaska, the Hawaiian Islands, Puerto Rico, and all other interests and territories of the United States are not included in the collection.

Generally, 1:80,000 NOAA coast charts took precedence and were used when available. For areas where 1:80,000 charts were not readily available, charts with the next closest higher scale (e.g., 1:60,000) were used down to the highest scale available. Alternately, if higher scale charts were not available, charts of the closest lower scale (e.g., 1:100,000) were used down to the lowest scale. The digital shoreline for Florida was obtained from the state. This digital file was originally created from NOAA nautical charts and was not recreated by SEA. Generally, for these shoreline sections (EC80_06, GC80_05, and GC80_06), the highest scale charts available were used to digitize the shoreline. The resultant average mapping scale for the entire Medium Resolution Digital Vector Shoreline is approximately 1:70,000.

The product is designed for use by a broad audience and is available through this service. Potential users include government agencies, universities, research institutions, and individuals in the private sector. Digital files are available in ESRI shapefile format.

These digital geographic boundary files are available for download from this site. Please refer to the full documentation file prior to using these data.
Вложения

bim2010
Гуру
Сообщения: 950
Зарегистрирован: 27 янв 2009, 22:57
Статьи: 1
Проекты: 2
Репутация: 239

Re: World Vector Shoreline (WVS®)

Сообщение bim2010 » 05 май 2010, 14:15

Береговая линия.
Основа: "Получение данных Landsat/ETM+ 2000 года в виде мозаик"
Выполнено по тайлам N-36-65_ul_2000.tif и N-36-65_ur_2000.tif
Формат: ESRI shapefile format
Вложения
shorelines_gislab_n36_65.7z
(183.18 КБ) 334 скачивания

Аватара пользователя
Mavka
Гуру
Сообщения: 2060
Зарегистрирован: 14 мар 2008, 17:36
Статьи: 11
Проекты: 2/1
Репутация: 9

Re: World Vector Shoreline (WVS®)

Сообщение Mavka » 15 дек 2010, 18:32

VLIZ Maritime Boundaries Geodatabase
Разработчик: Flanders Marine Institute (Бельгия).
лангольеры под окном жрали время ом-ном-ном

bim2010
Гуру
Сообщения: 950
Зарегистрирован: 27 янв 2009, 22:57
Статьи: 1
Проекты: 2
Репутация: 239

Re: World Vector Shoreline (WVS®)

Сообщение bim2010 » 30 ноя 2012, 18:54

www.marineregions.org
Marine Regions is created by merging information from the VLIMAR Marine Gazetteer and the MARBOUND database. These initiatives provide information on marine place names and on different marine and maritime boundaries, including the World Exclusive Economic Zones. The system defines different relations between the geographic objects (similar to, part of, adjacent to…) allowing the user to group joint geographic units and to create a hierarchical classification of different places. In order to preserve the identity of the marine geographic objects from the database, and to name and locate the geographic resources on the web, we maintain a persistent Marine Regions Geographic IDentifier, or the MRGID. The information is freely available and can be accessed through several web services which allow the user to have direct access to the geographic data, maps and metadata.



Marine Regions is initiated by the Flanders Marine Institute. With the launch of Marine Regions, we are also aiming at the establishment of an international editorial board, responsible for the content, quality control and promotion of Marine Regions. You can apply for membership by sending your contact details, interest and proposed contribution to info@marineregions.org
